5-axis CNC Machining Technical Analysis

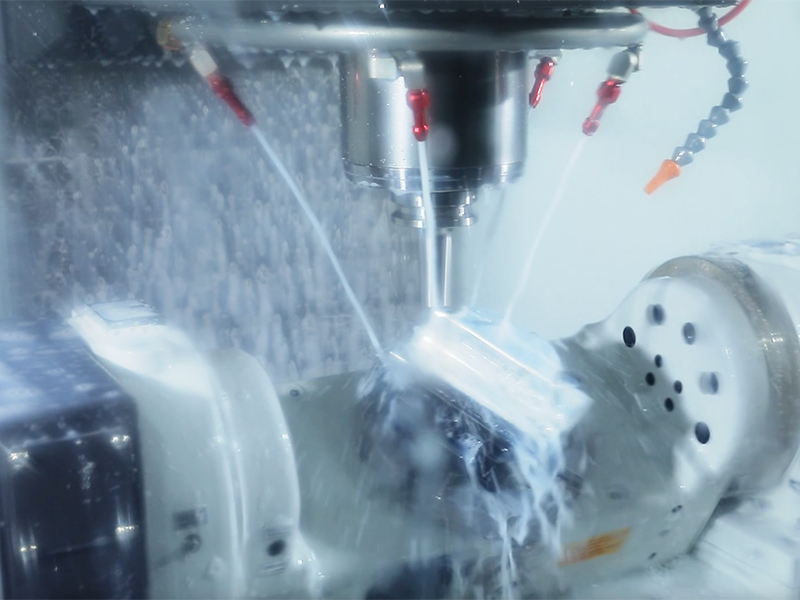

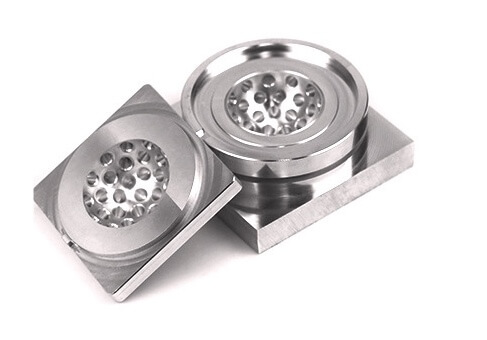

5-axis CNC machining processes

complex parts through the linear motion of the X, Y, and Z axes and the rotational linkage of the A/B axes, breaking through the geometric limitations of traditional manufacturing and achieving high-precision processing of complex curved surfaces. The advantage of five-axis CNC machining lies in reducing the number of clamping operations and enhancing the forming ability of complex geomeuses. It is particularly suitable for the manufacturing of high-value-added parts in fields such as aerospace and high-end medical care.

Shengyi Intelligent Technology, adhering to aerospace-grade precision standards (AS9100D) and the concept of green manufacturing, provides customers with a full-chain solution from design simulation to post-processing.

Submit your complex part drawings and experience the innovative value brought by five-axis technology!

Upload Your Drawings

Five-Axis Machining VS Three-Axis Machining

Comparison dimension	3-axis CNC	5-axis CNC
Processing complexity	Limited to simple three-dimensional structures	It can handle ultra-complex geomeuses such as inverted surfaces, deep cavities, and continuous curved surfaces
Clamping times	It needs to be turned over several times	A single clamping completes multi-sided processing
Precision control	±0.02mm (Manual calibration required)	±0.01mm (Full closed-loop compensation)
Typical cost	$50-$200 per hour	$150-$500 per hour
	Medium and small batch (1-1000 pieces)	Small batch and high added value (1-500 pieces)

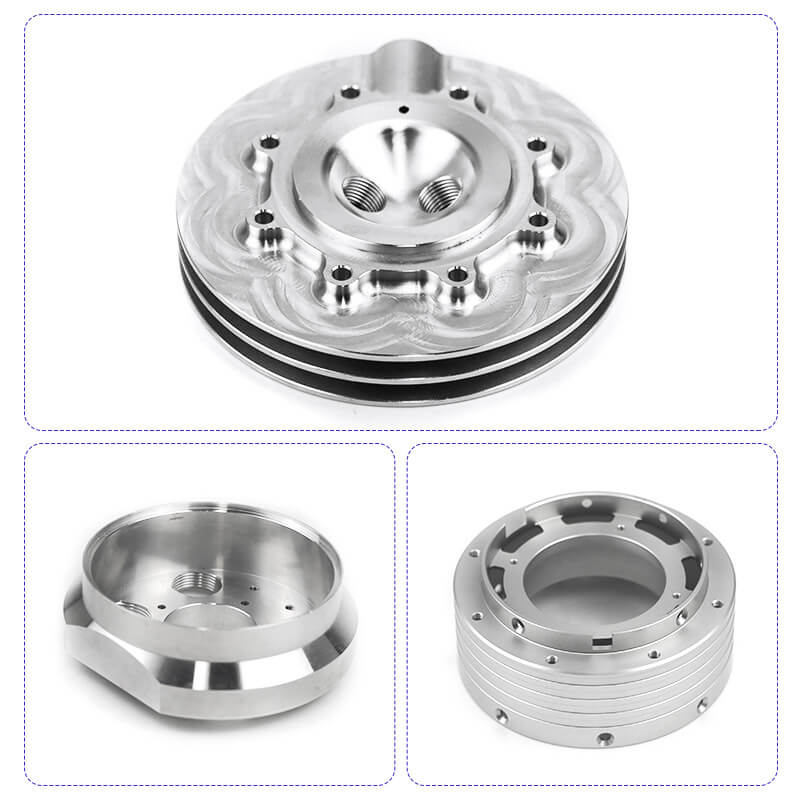

5-Axis CNC Machining Application

Complex Curved Surfaces and Irregular Structures

✓
Aerospace: Turbine blade
(titanium alloy TC4, surface accuracy ±0.03mm).
✓ Processing requirements: Free-form surface aerodynamic shape + internal cooling channel (diameter φ1.5mm).
✓ Solution: Five-axis linkage milling for one-time forming avoids reference errors caused by multiple clamping.
✓
Medical devices: Artificial joint
(cobalt-chromium alloy, surface roughness Ra0.4μm).
✓ Processing requirements: Bionic curved surface biocompatible polishing + microporous structure (pore diameter φ0.3mm).
✓ Solution: Five-axis precision ball head tool processing, combined with electrolytic polishing process.
Multi-angle Compound Processing

✓
Automobile mold: Bumper injection mold
(hardness HRC55, dimensions 800×400×200mm).
✓ Processing requirements: Deep cavity inverted structure (inclination Angle ≥45°) + mirror electrical discharge texture (VDI 3400).
✓ Solution: Five-axis side milling + swing Angle processing to achieve seamless integral forming.
✓
Energy equipment: Impeller
(Stainless steel 316L, diameter 300mm).
✓ Processing requirements: 20 arc-shaped blades (2mm thickness) + dynamic balance accuracy G2.5 grade.
✓ Solution: Five-axis synchronous turning and milling compound processing to reduce the risk of deformation caused by centrifugal force.

Common 5-axis CNC Machining Materials

Common Metal Materials

✓ Aluminum

✓ Stainless steel

✓ Brass

✓ Copper

✓ Titanium

✓ Mild steel

✓ Alloy steel

✓ Tool steel

✓ Spring steel
Common Plastic Materials

✓ ABS

✓ Polycarbonate

✓ Nylon

✓ Polypropylene (PP)

✓ POM

✓ PTFE (Teflon)

✓ PMMA (Acrylic)

✓ Polyethylene (PE)

✓ PEEK

✓ Bakelite

✓ FR4

✓ Rubber

✓ Carbon Fiber

ISO 14001:2015ISO 14001 certification drives us to practice sustainable manufacturing, with green production as the core goal. We optimize cutting parameters to reduce the waste rate. The recovery rate of aluminum chips reaches 95%, and the coolant circulation system reduces hazardous waste emissions by 30%.
The upgrade of high-efficiency equipment has reduced energy consumption (case: annual electricity bill savings of 80,000 yuan), meeting the ESG audit standards of European and American customers.

ISO 9001:2015Through ISO 9001 certification, we have established a closed-loop of full-process quality management: from drawing review to finished product inspection, precise control is achieved. The standardized process ensures that the dimensional tolerance of parts is stable (±0.02mm), and the surface finish reaches Ra1.6μm. First Piece Inspection (FAI) and Process Monitoring (SPC) intercept batch defects. For example, in the processing of a certain medical part, the defect rate was reduced to 0.15%.

Custom Surface Finishes

✓ Standard (As-Milled) (Ra 125μin)

✓ Bead blast + Anodized color

✓ Anodized

✓ Electrically conductive oxidation

✓ Black oxide

✓ Brushed

✓ Bead Blast

✓ Spray painting - Matt paint

✓ Spray painting - High gloss paint

✓ Powder coat - Matt

✓ Powder coat - High gloss

✓ Chrome plating

✓ Galvanization

✓ Nickel plating

✓ Silver plating

✓ Gold plating

✓ Tin plating

✓ Vacuum plating - High gloss paint

✓ Vacuum plating - Matt paint

✓ #1000 sanding

✓ Silkscreen

✓ Laser engraving

✓ Smooth machining (Ra1.6µm, 63 µin)

✓ Electrophoresis

✓ Passivation

✓ Etching

✓ Electropolished (Ra0.8µm, 32µin)

✓ PVD (Physical Vapor Deposition)

✓ Pickling

✓ Dyeing

5-axis CNC Machining Frequently Asked Questions:

Does five-axis machining support super-large parts?

The stroke of Shengyi Intelligent Technology's five-axis machine tool is 300×300×300mm (X×Y×Z). If the part exceeds this range, we can provide a segmented processing + precision welding solution.
Why is the cost of five-axis machining relatively high?

Investment in five-axis cnc machining equipment (about 3 to 8 times that of three-axis), high programming complexity (CAM software requires a five-axis module), and rapid tool wear (tool life for titanium alloy processing is reduced by 40%).
What is the minimum Order quantity (MOQ)?

Support minimum order quantity. It is recommended that the order quantity be no more than 50 pieces to balance cost-effectiveness.
